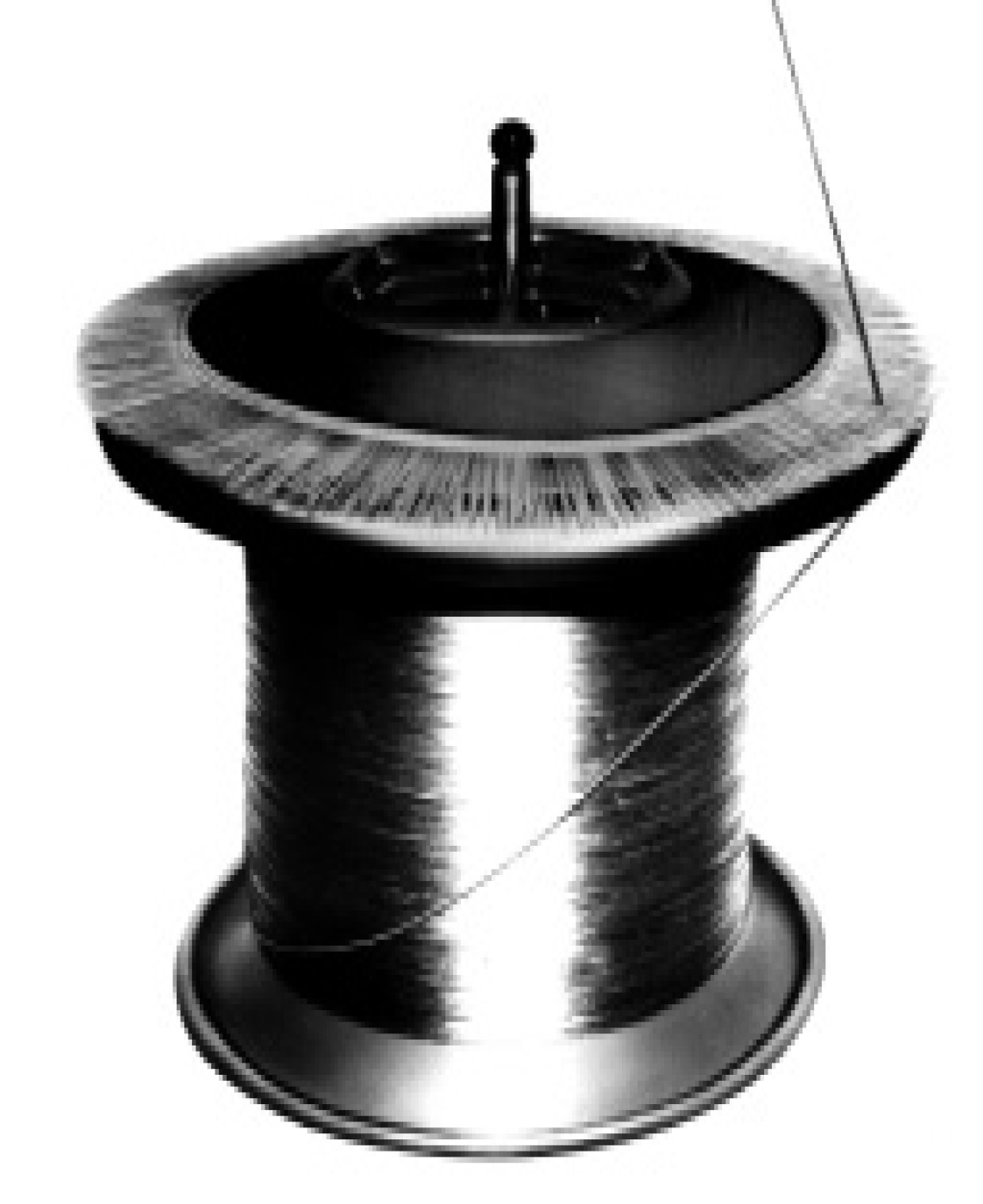

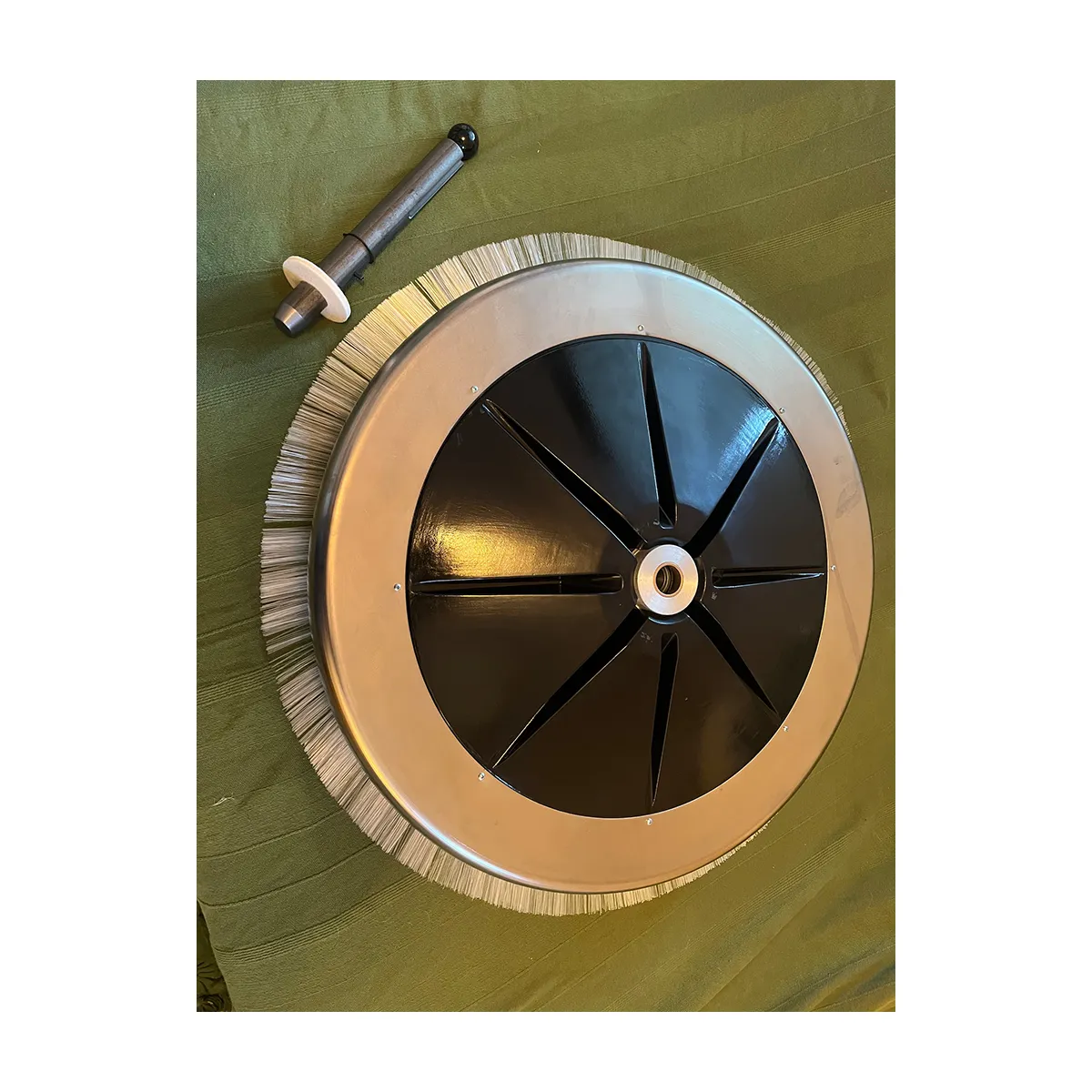

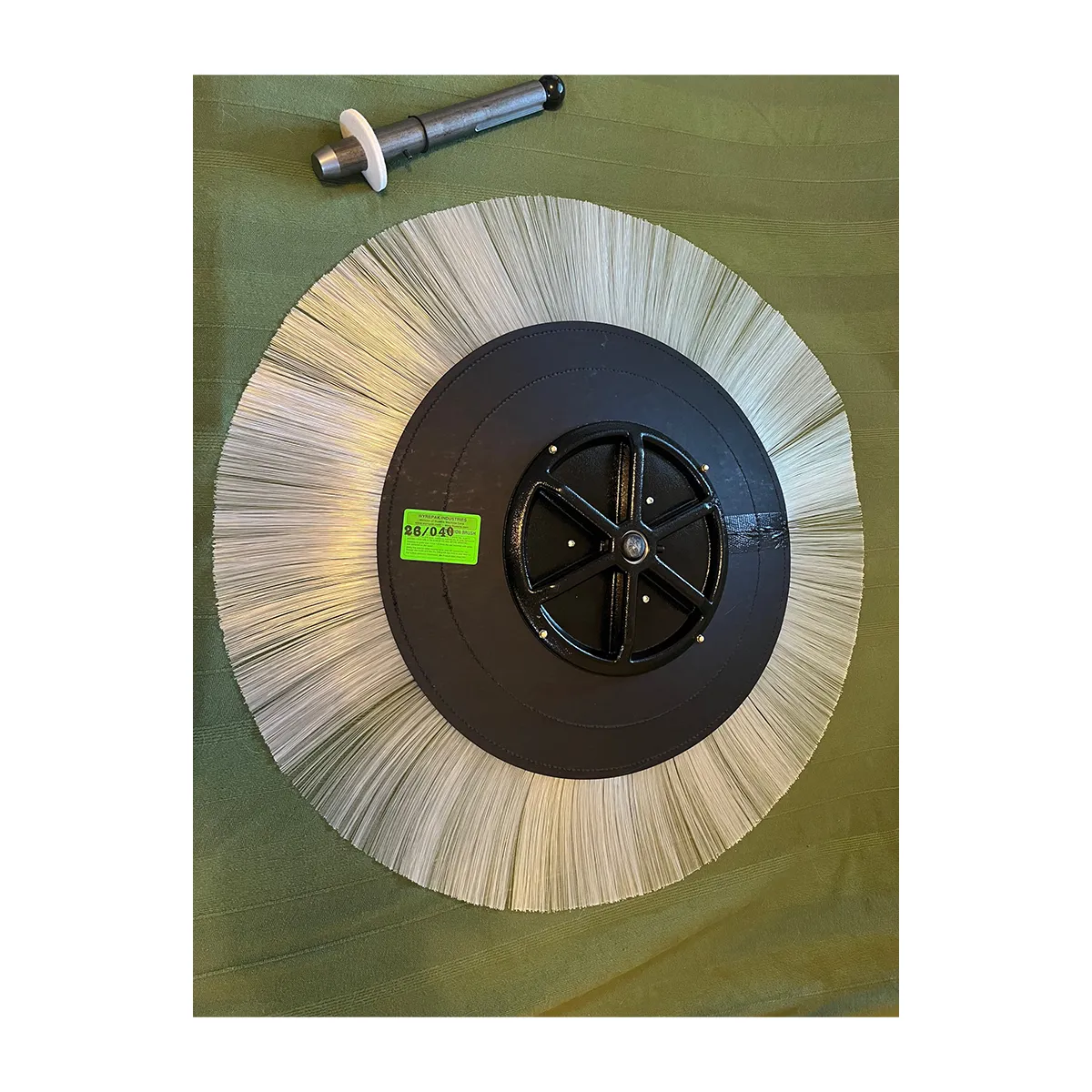

WYREPAK PD-1 Spool Cap & Tension Brush Payoff / Whisker Disk

A simple, economical method of paying off many types of wire with steady back tension.

Features include:

• Smooth, nickel-plated steel cap.
• Works best with single bare wire, insulated wire, and some multiwire.
• Speeds up to 600 feet per minute.
• Easily mounted by attachment to the spool with a bore adapter.
• Tension brushes are made from wear-resistant monofilament nylon, customized according to wire type and size.
• Tension is maintained when payoff stops, so no ""run on"" or ""cascading"" occurs. This eliminates wire breaks at start-up.
• Payoff can be vertical, horizontal or angled.

PD-26 HIGH SPEED UNIT

Standard units allow payoff up to 600 feet/min (184 meters). Higher speeds of up to 1200 feet/min (370 meters) can be achieved by using Wyrepak's PD-26 and PD-26A units.
